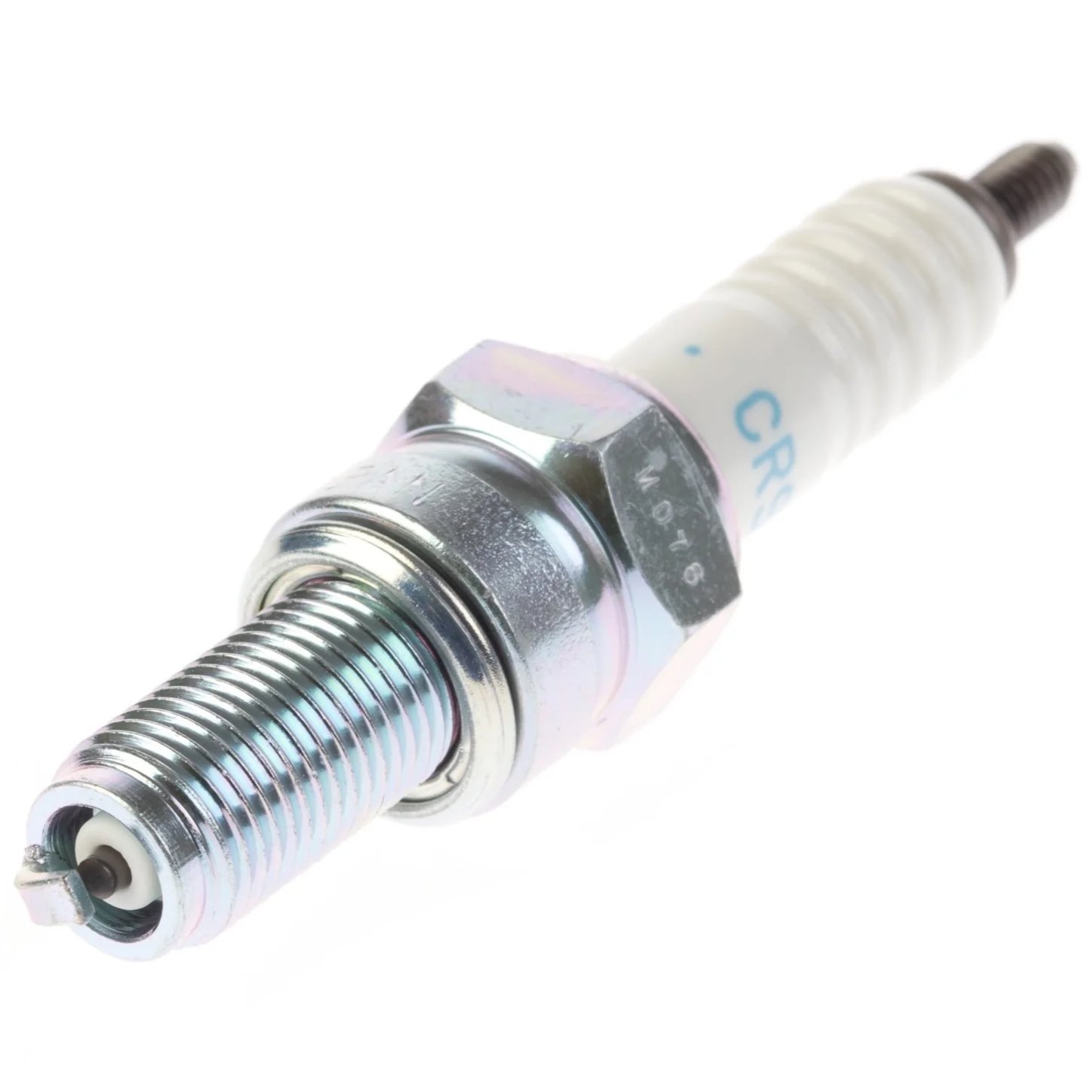

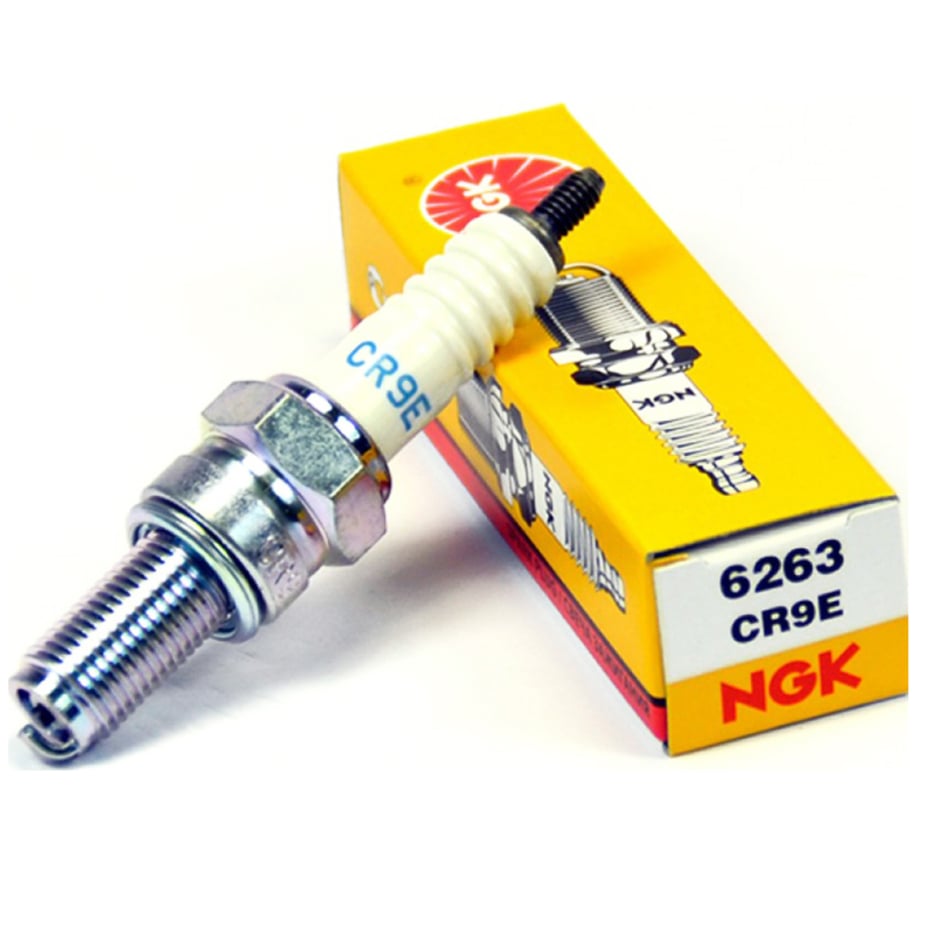

Product description
NGK standard plugs are constructed for longer life and optimum performance.
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
Product Specifications
Shell
Thread Diameter
10mm
Thread Pitch
1.0mm
Seat Type
Gasket
Reach
19mm (3/4")
Hex Size
5/8" (16mm)
Terminal Type
Threaded Stud
Overall Height
ISO
Gap
.031" (0.8mm)
Center Electrode
Material
Nickel
Type
Standard
Size
2.5mm
Projection
Non-Projected
Ground Electrode
Material
Nickel
Type
Standard
Quantity
1
Specifications
Resistor
Yes
Resistor Value
5k Ohm
Heat Range
9
Torque Specs
Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.
Part Information
Brand
NGK
Longevity
30k Miles
Fitment
• 2024
• Arctic Cat
• Kawasaki
• Yamaha
• 2023
• Kawasaki
• Yamaha
• 2022
• Kawasaki
• Yamaha
• 2021
• Kawasaki
• 2020
• Kawasaki
• 2019
• Arctic Cat
• Kawasaki
• Yamaha
• 2018
• Arctic Cat
• Kawasaki
• Yamaha
• 2017
• Arctic Cat
• Kawasaki
• Yamaha
• 2016
• Aprilia
• Arctic Cat
• Kawasaki
• Yamaha
• 2015
• Aprilia
• Arctic Cat
• Kawasaki
• Yamaha
• 2014
• Aprilia
• Arctic Cat
• Kawasaki
• Yamaha
• 2013
• Aprilia
• Kawasaki
• Yamaha
• 2012
• Aprilia
• Kawasaki
• Yamaha
• 2011
• Aprilia
• Kawasaki
• Yamaha
• 2010
• Aprilia
• Kawasaki
• Yamaha
• 2009
• Kawasaki
• Suzuki
• Yamaha
• 2008
• Kawasaki
• Suzuki
• Yamaha
• 2007
• Ducati
• Kawasaki
• Suzuki
• Yamaha
• 2006
• Ducati
• Kawasaki
• Suzuki
• Yamaha
• 2005
• Ducati
• Kawasaki
• Suzuki
• Yamaha
• 2004
• Ducati
• Kawasaki
• Suzuki
• Yamaha
• 2003
• Ducati
• Kawasaki
• Suzuki
• Yamaha
• 2002
• Kawasaki
• Suzuki
• Yamaha
• 2001
• Kawasaki
• Suzuki
• Yamaha
• 2000
• Kawasaki
• Suzuki
• Yamaha
• 1999
• Kawasaki
• Suzuki
• Yamaha
• 1998
• Kawasaki
• Suzuki
• Yamaha
• 1997
• Kawasaki
• Suzuki
• Yamaha
• 1996
• Kawasaki
• Suzuki
• Yamaha
• 1995
• Kawasaki
• Suzuki
• Yamaha
• 1994
• Kawasaki
• Suzuki
• Yamaha
• 1993
• Kawasaki
• Suzuki
• 1992
• Kawasaki
• 1991
• Kawasaki
• 1990
• Kawasaki
