Product description
Isolator Mount Kit
Drag Specialties Part #: 0933-0119
Drag Specialties Non-Punctuated Part Number: 9330119
Manufactuer: DRAG SPECIALTIES
Manufactuer Part #: E28-0022K
Manufactuer Non-Punctuated Part #: E280022K
UPC Code:
Unit of Measure (UOM): KT
Features
- Kits include all parts needed to replace front and rear isolator mounts
- Front kit PART #0933-0117 includes OEM #s 16287-04 isolator mount, 48463-04 isolators, 41562-04 center bolt, 41561-04 nut and 4290 isolator mount screws
- Rear kits PART #0933-0119 and 0933-0118 includes OEM #s 16291-04 isolator mount, 48492-04 isolators, 41699-04 lock plate, 4750004 or 41568-04 pivot shaft, 4290 isolator mount screws and 940 lock plate screws
- Front and rear kits sold separately
Specs
- Product Name: Mount Kit
- Type: Isolator
- Color/Finish: Black
- Mounting Position: Rear
- Units: Kit
- Riding Style: Street
- Base Color: Black

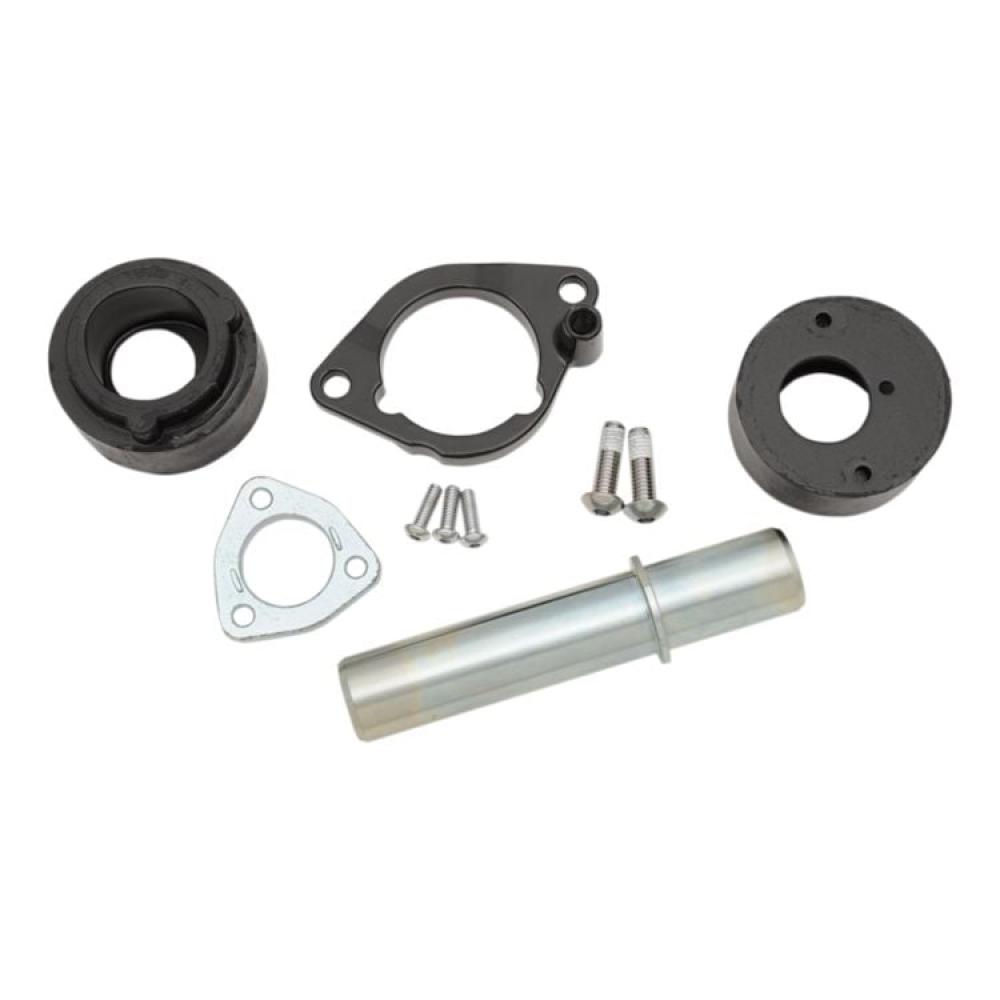

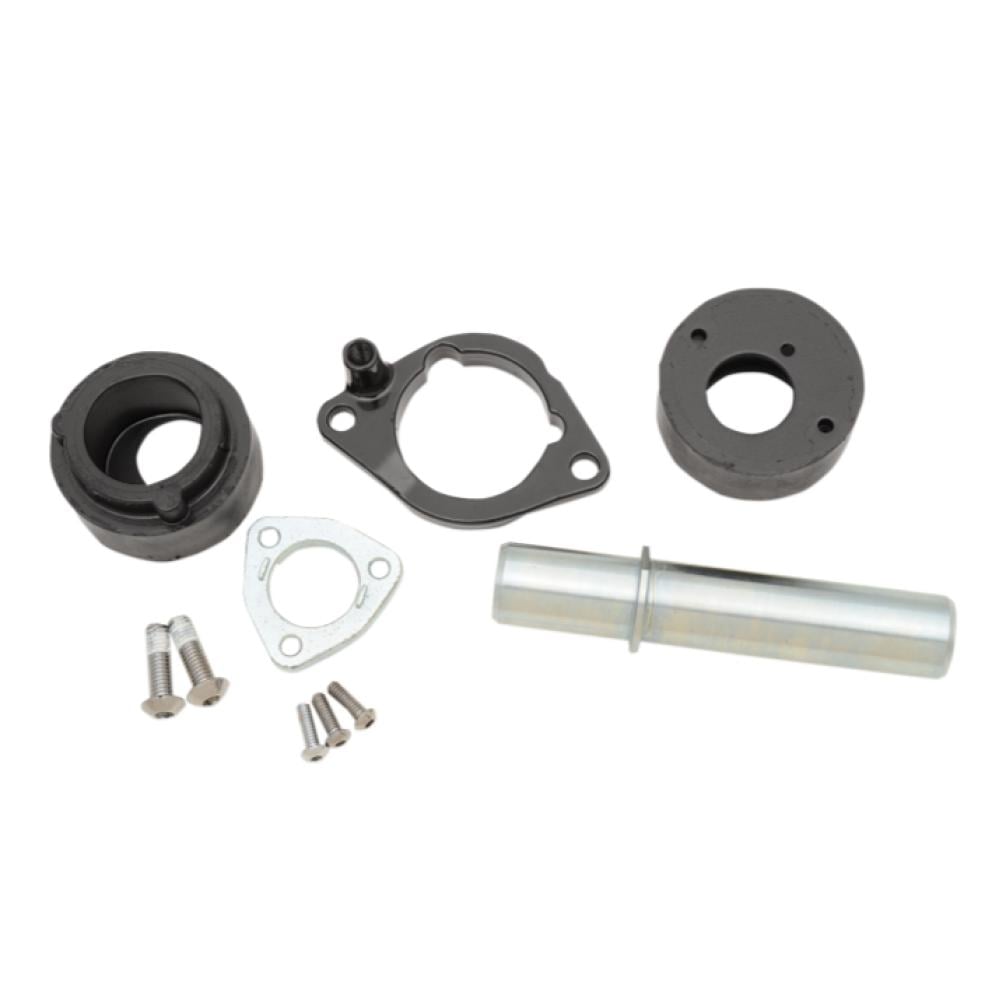

These kits include all of the parts needed to replace the worn out rear isolator mounts on your Sportster.
Features:
- Includes isolator mount, isolators, lock plate, pivot shaft, isolator mount screws and lock plate screws
- Replaces OEM 16291-04, 48492-04, 41699-04, 4290, 940 and 4750004
Fitment
HARLEY DAVIDSON
Sportster Custom XL1200C 2014-2019
Sportster Forty-Eight Special XL1200XS 2018, 2019
Sportster Forty-Eight XL1200X 2014-2022
Sportster Iron XL1200NS 2018, 2019, 2020, 2021
Sportster Iron XL883N 2014-2022
Sportster Low/SuperLow XL883L 2014-2019
Sportster Roadster XL1200CX 2016, 2017, 2018, 2019, 2020
Sportster Seventy-Two XL1200V 2014, 2015, 2016
Sportster SuperLow XL1200T 2014, 2015, 2016, 2017
